Rotaflow delivers NFPA-compliant inspection, testing and maintenance of fire protection systems in industrial, commercial and municipal facilities to help assure system reliability, operational safety and compliance with Alberta fire codes and NFPA 25 standards.
Rotaflow’s certified technicians follow NFPA 25, Alberta Building Code, and AHJ requirements to help maintain reliable and compliant fire protection systems.
Rotaflow offers NFPA-compliant inspection, testing and maintenance services to assist industrial, commercial and municipal establishments in maintaining reliable fire prevention systems, mitigating operating hazards, and meeting Alberta fire code and AHJ compliance standards.
Rotaflow carries out extensive inspections of fire sprinklers, pumps, hydrants and alarms to ascertain system status, detect flaws and ensure compliance with NFPA 25 standards and Alberta fire safety legislation.
Routine testing services include hydrostatic testing, main drain testing, trip testing and alarm verification to verify all fire protection systems are in working order, compliant and emergency ready.
Rotaflow provides weekly and annual fire pump testing, vibration analysis, controller inspections and flow testing to ensure dependable operation and enough water pressure in emergencies.
Hydrant inspections include flow testing, flushing, leak identification, valve maintenance, lubrication, and winterisation services to ensure reliable emergency water supply performance year-round.
Rotaflow provides fire alarm system reliability evaluations, including detector calibration, battery load tests, audibility tests, emergency illumination inspections and alarm signal transmission confirmation.
Custom maintenance packages extend the life of your system with sprinkler replacements, piping repairs, obstructions clearing, system flushing, component service and continuing monitoring support.
Rotaflow uses a standardised NFPA inspection, testing and maintenance approach to help industrial, commercial and municipal establishments maintain reliable fire protection systems, lower operational risks and fulfil Alberta fire code and AHJ compliance standards.
Rotaflow inspects sprinklers, hydrants, alarms and fire pumps to discover problems and ensure NFPA compliance.
NFPA testing involves flow testing, alarm checks, trip testing and system verification for emergency readiness.
Routine maintenance includes servicing valves, replacement of sprinklers, lubrication and plumbing repairs.
Rotaflow is consistent with the criteria of NFPA 25, Alberta fire codes and AHJ for compliant fire protection systems.
Rotaflow provides detailed reports and records of compliance to support audits, insurance reviews and regulatory documents.
Rotaflow provides timely NFPA inspection, testing, and maintenance services to help facilities maintain compliance, improve fire protection reliability, and reduce operational risks across industrial and commercial environments.
Rotaflow offers dependable NFPA inspection, testing and maintenance services to assist buildings stay compliant, safer, and keep fire protection systems running reliably.
Inspection and Maintenance Programs are tailored to the facility risks and system needs.
Specialised testing equipment validates the performance of fire prevention systems and conformity with NFPA codes.
Inspection, testing and maintenance by certified specialists for reliable fire protection.
NFPA 25 requires a main drain test yearly for each water supply lead-in to a water-based fire protection system in a structure, for the purpose of detecting any change in the condition of the water supply. But if the only water supply is through a backflow preventer or pressure reducing valve, the main drain test must be done quarterly on at least one downstream system instead. And if any test shows a 10 percent loss in full-flow pressure compared with the original acceptance test, the cause must be investigated.
NFPA 25 requires an annual flow test of each pump assembly under three conditions: the no-flow (churn), rated flow, and 150 percent of the rated capacity of the pump. If the available suction supply does not allow flowing at 150 percent of rated capacity, the standard allows testing the pump to maximum permissible discharge. So a lower supply does not excuse the pump from testing, it merely changes the ceiling of what is tested.
Internal obstruction surveys are required by NFPA 25 every five years, but the standard states that earlier surveys are necessary when test results or observed conditions indicate that a higher frequency is required; in other words, findings from routine inspections, unusual discharge patterns, or changes in the water supply can shorten that interval.
Gauges used to measure air or nitrogen pressure in a dry system should be monitored weekly to ensure normal pressure is maintained, whereas gauges used to check water pressure should be evaluated quarterly. For freezer applications where gauges are located on both sides of the air line, the compressor gauge should also be checked to the gauge on the dry valve side on a monthly basis. If there is a discrepancy (the compressor gauge reads higher), the air line should be removed from service and transferred to the alternate line.
NFPA 25 requires that all valves be returned to the correct open or closed position after an annual trip test before the system is placed back into service. This is an easily overlooked step, but it is critical, because a valve left in the wrong position after the test can render the system inoperable, even though it just passed its test.
Novec 1230 Fire Suppression System:
FK-5-1-12 is a cutting-edge, sustainable clean agent designed to suppress fires efficiently while being safe for the environment. It provides:
Fire Sprinkler System Inspection
Fire sprinklers are the backbone of any water-based fire suppression system. Regular inspections ensure they are in top working order. Rotaflow follows NFPA 25 standards for fire sprinkler inspections, covering:

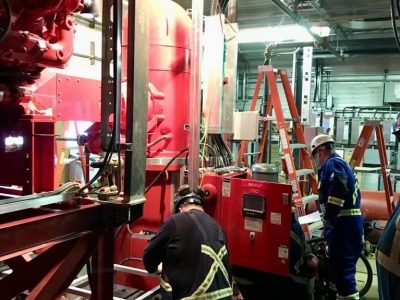

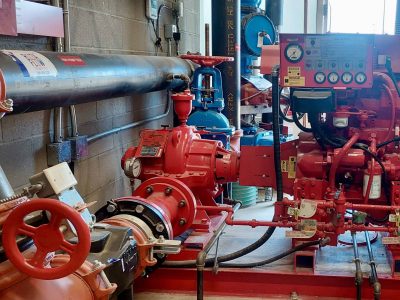

Fire Pump Inspection & Performance Testing
Fire pumps play a crucial role in maintaining adequate water pressure for fire suppression. Rotaflow ensures fire pumps operate efficiently through:

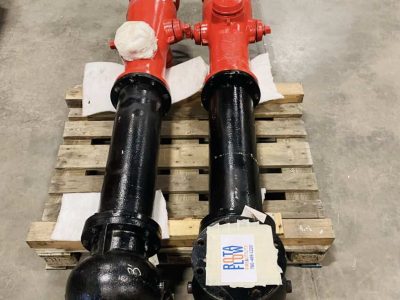

Fire Hydrant Inspection & Testing
Fire hydrants must be tested annually to ensure they provide adequate water supply during fire emergencies. Rotaflow’s inspection services include:

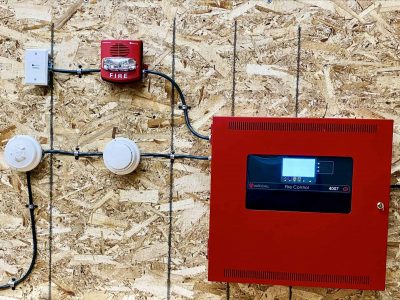

Fire Alarm System Testing & Certification
An effective fire alarm system ensures early detection of fires, reducing response time and potential damage. Rotaflow provides fire alarm inspection and testing to verify system reliability, including:
Annual Fire System Testing & Reporting
Regular testing is required to maintain compliance and ensure fire systems function as expected. Rotaflow provides:
Rotaflow stays updated with evolving industry standards by maintaining membership with the Canadian Auto Sprinkler Association (CASA). This commitment allows Rotaflow to integrate the latest fire protection advancements into inspection and maintenance practices.
Rotaflow ensures compliance with the Alberta Building Code, which mandates stringent fire protection measures for industrial and commercial facilities. By collaborating with local Authorities Having Jurisdiction (AHJ), including fire departments in Edmonton and Calgary, Rotaflow ensures adherence to municipal regulations.
Rotaflow employs high-end fire system testing equipment to deliver accurate inspections and performance analysis. This includes:
Rotaflow’s Red Seal-certified technicians undergo rigorous training and certification programs, ensuring expertise in fire sprinkler system inspections, fire pump testing, fire hydrant maintenance, and NFPA compliance reporting. Their in-depth knowledge guarantees that fire protection systems remain reliable and fully operational.
