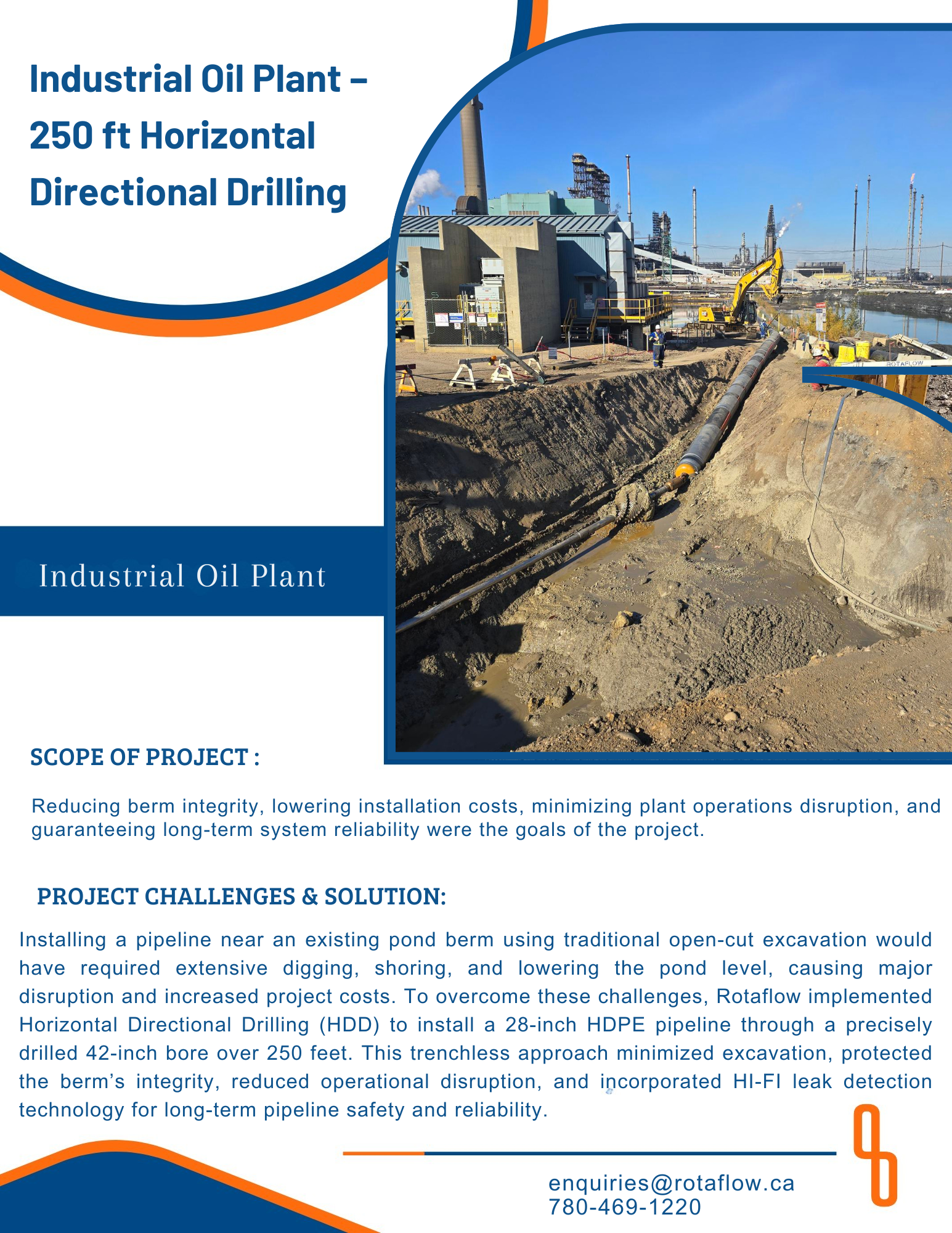

Industrial Oil Plant – 250 ft Horizontal Directional Drilling
Overview of the 250-foot horizontal directional drilling project at an industrial oil plant
A 250-foot Horizontal Directional Drilling (HDD) installation for a 28-inch HDPE pipeline at an industrial oil facility was successfully finished by Rotaflow.
Rotaflow’s crew used HDD technology to drill a 42-inch bore hole so that the pipeline could be installed underground without requiring extensive excavation.
Reducing berm integrity, lowering installation costs, minimizing plant operations disruption, and guaranteeing long-term system reliability were the goals of the project.
Project Specifics
Location of Detail Information
Facility for Industrial Oil
Type of Project: Horizontal Directional Drilling (HDD)
Bore Length: 250 feet
42-inch bore diameter
Installing a 28-inch HDPE pipeline with HDD and HI-FI leak detection technology
The Obstacle

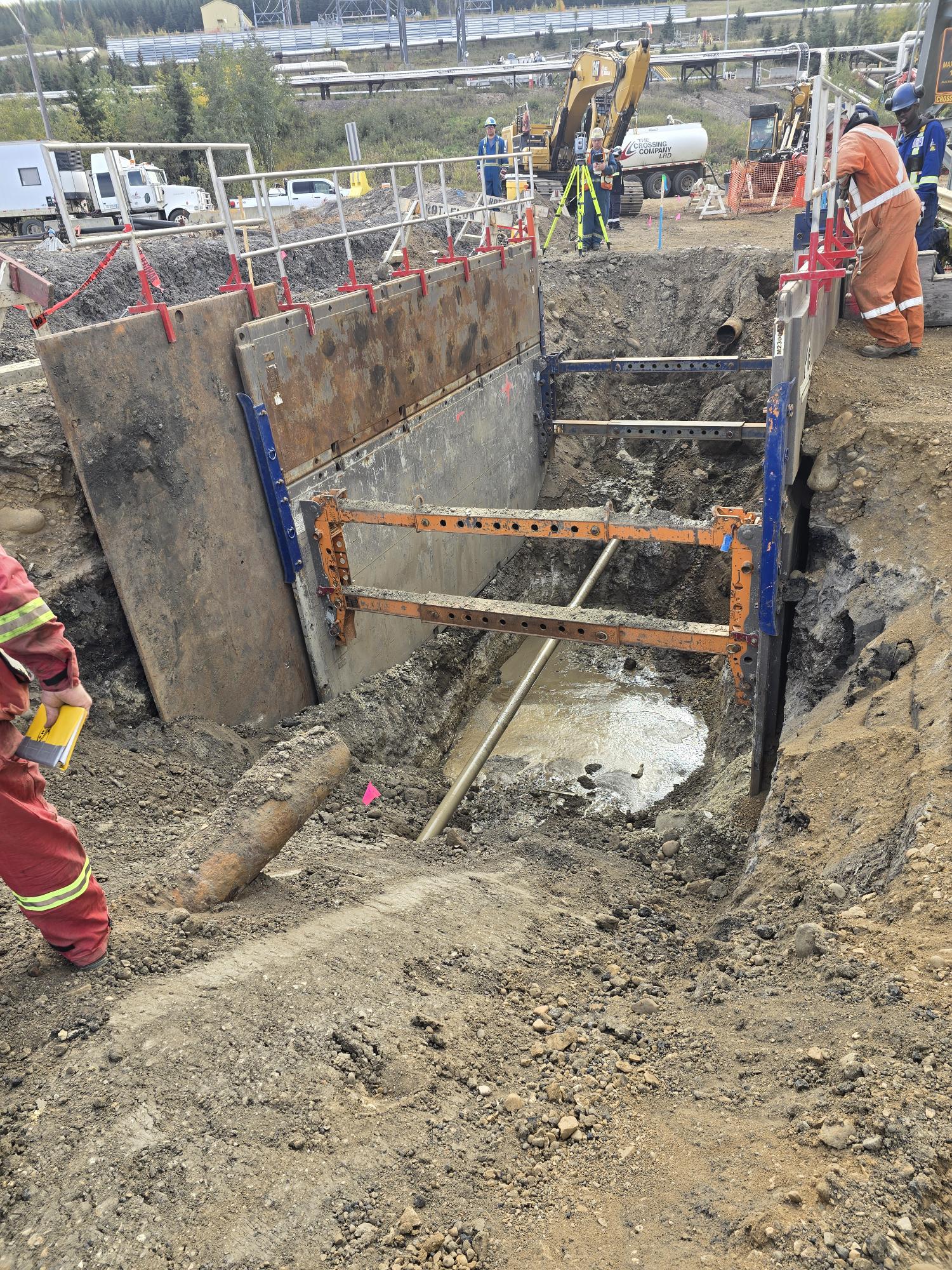

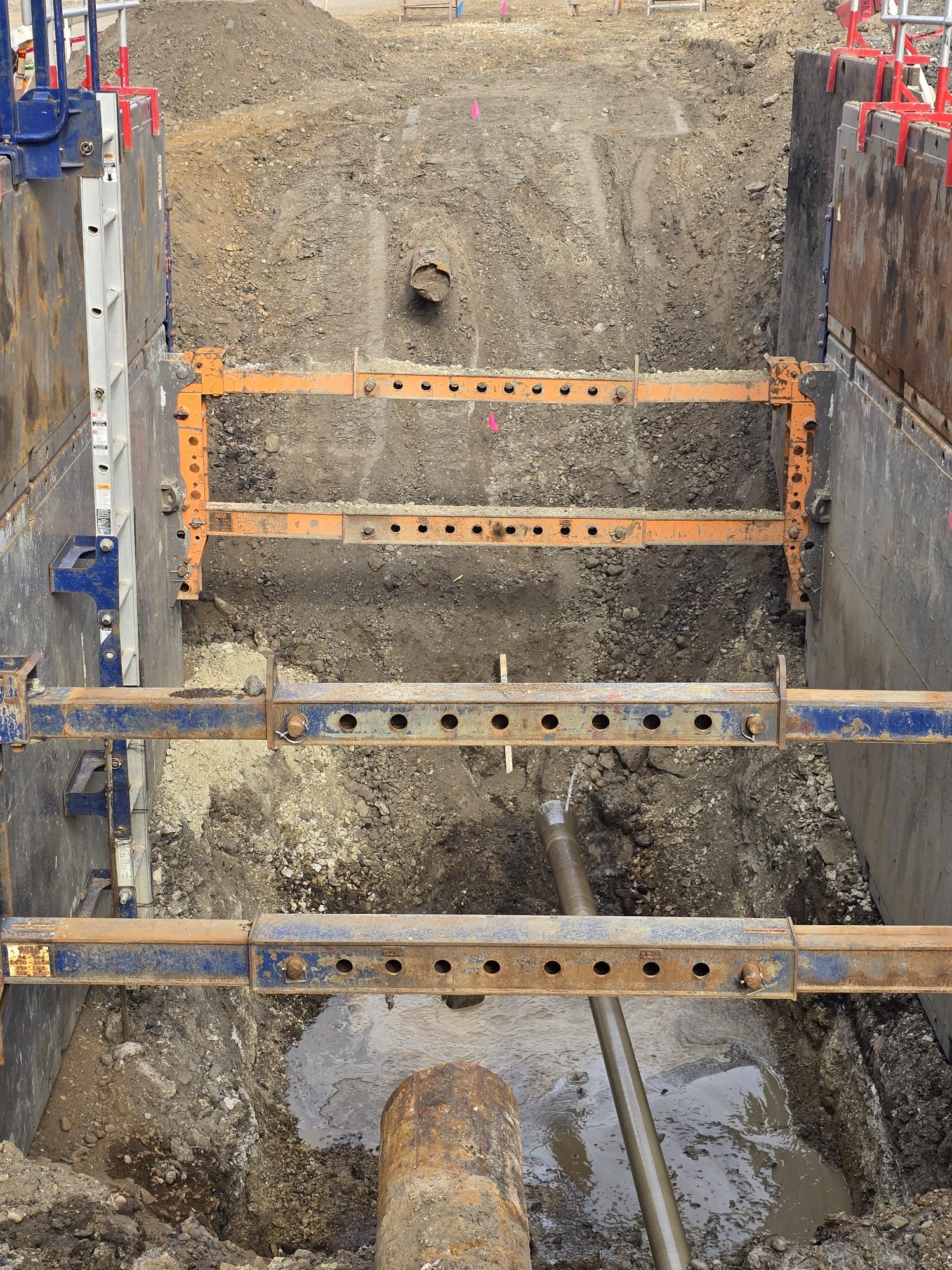

Traditional excavation techniques would have been very expensive and disruptive to install the pipeline next to an existing pond berm.
Conventional open-cut trenching would have necessitated:
- Significant excavation and shoring
- significant disturbance of the plant’s surface
- Longer construction duration
- Lowering the pond level
- Considerably increased project expenses
The client needed an installation technique that would satisfy the facility’s operational and safety requirements while being economical and causing the least amount of disturbance.
The Solution of Rotaflow
Horizontal Directional Drilling (HDD) was suggested by Rotaflow as a substitute for conventional excavation.
The HDD technique greatly reduced the impact of construction and project cost by enabling the pipeline to be installed underground without affecting the surface infrastructure.

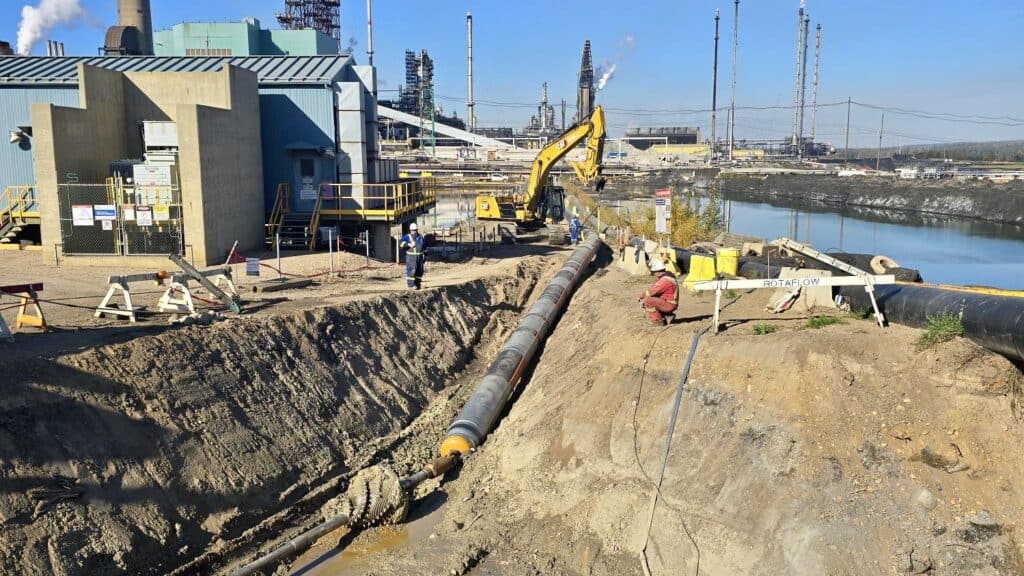

In order to create a precise underground pathway for the 28-inch HDPE pipeline, our team successfully drilled a 42-inch bore hole horizontally over a distance of 250 feet.
This strategy produced a number of benefits:
- Less excavation and restoration work
- Minimal interference with the facility’s operations
- Quicker project completion
- The integrity of the current berm is not being compromised
- Reduced total cost of installation
Execution
- To ensure precise and safe drilling, the Rotaflow team used a meticulously designed HDD process.
- Important project steps included:

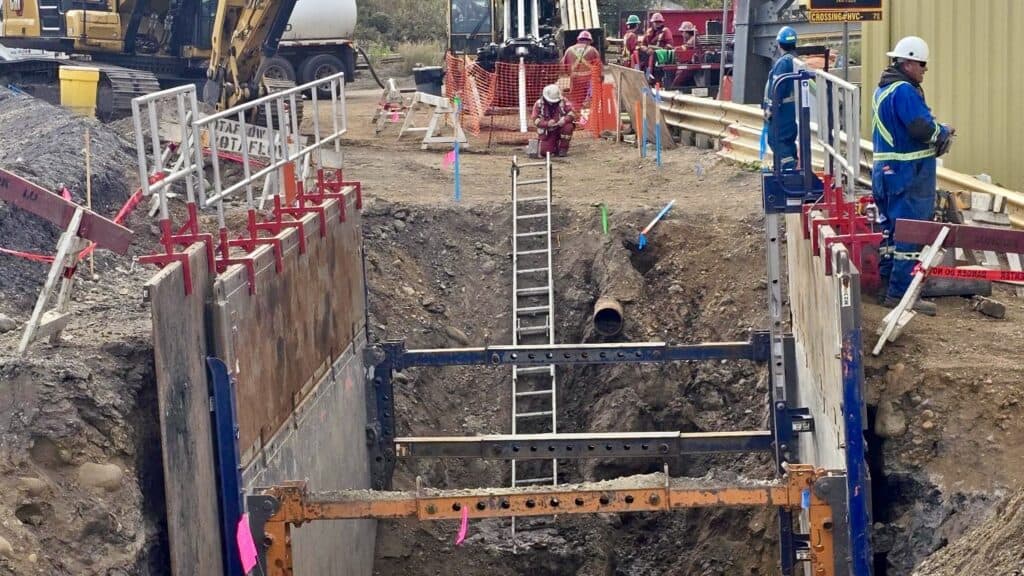

- Drilling path planning, site evaluation, and engineering
- Drilling a 42-inch bore hole precisely

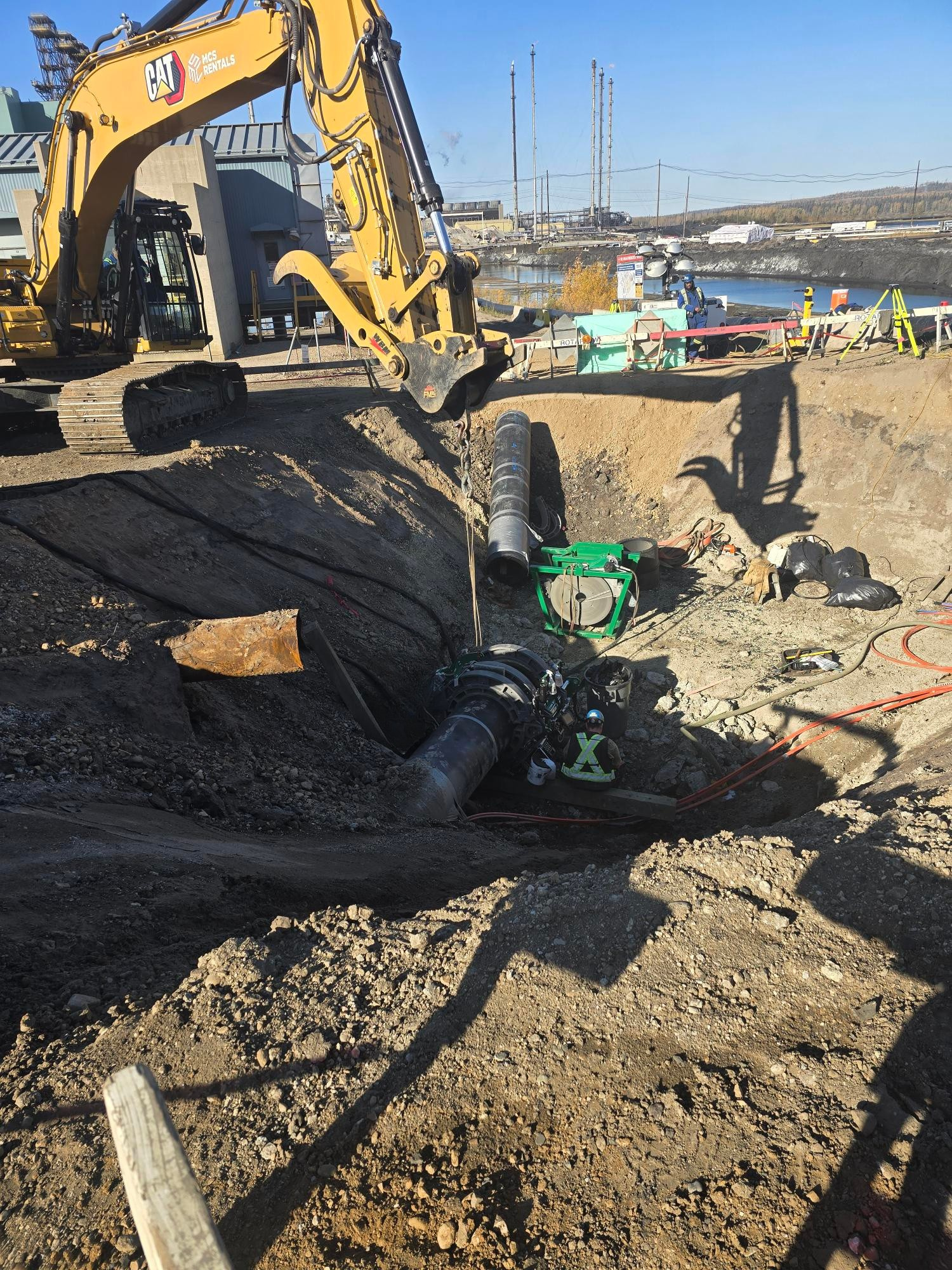

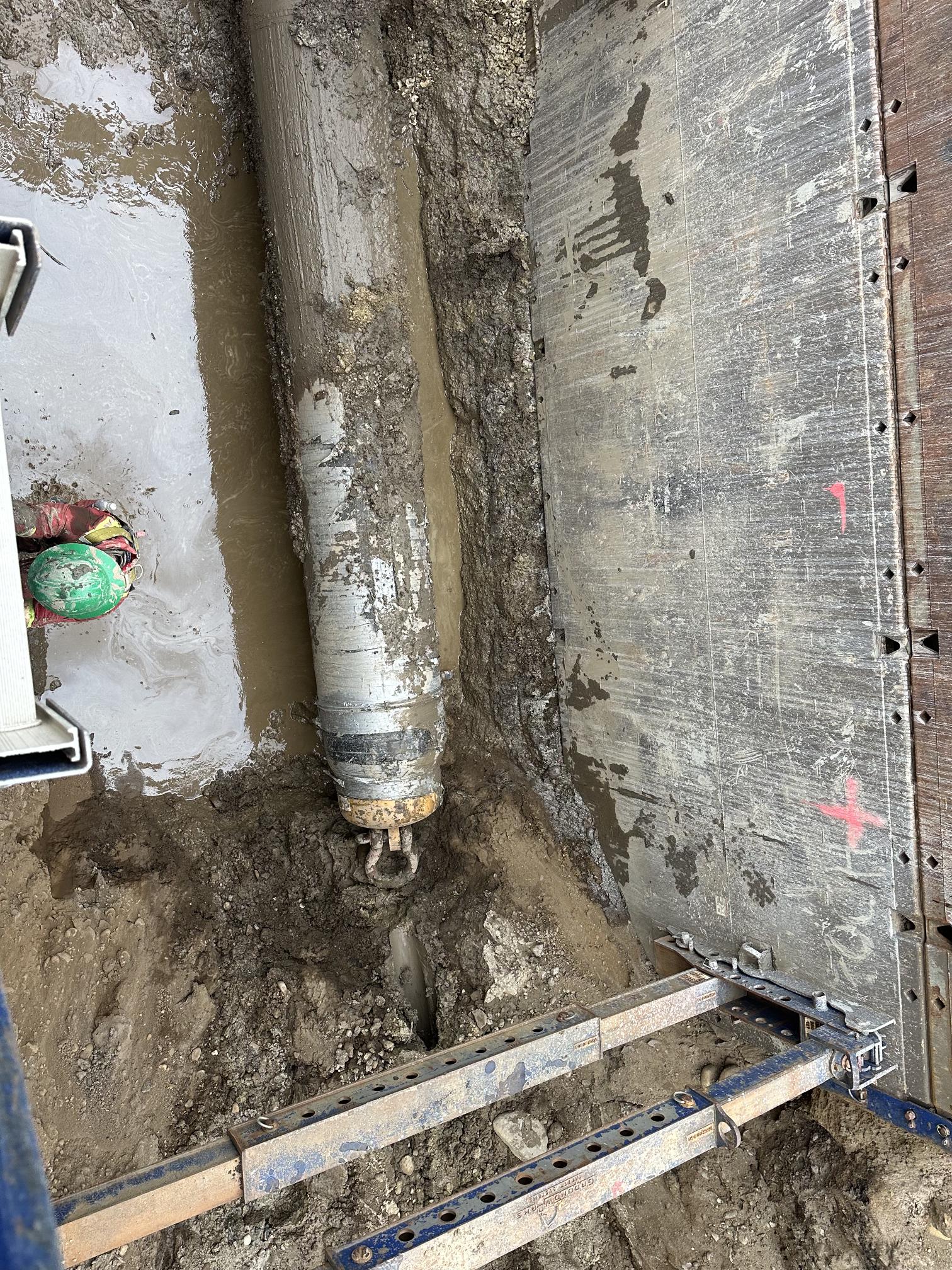

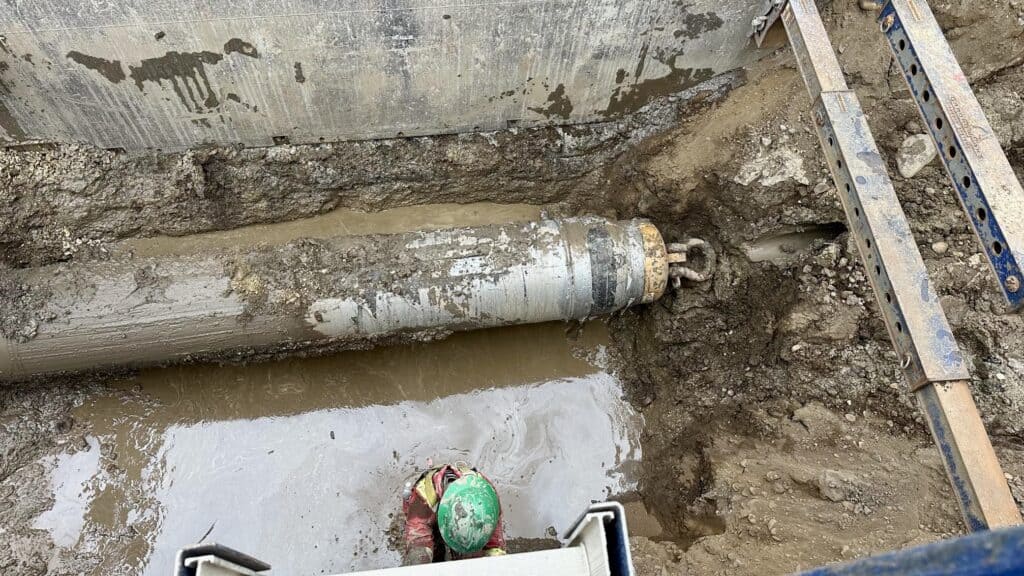

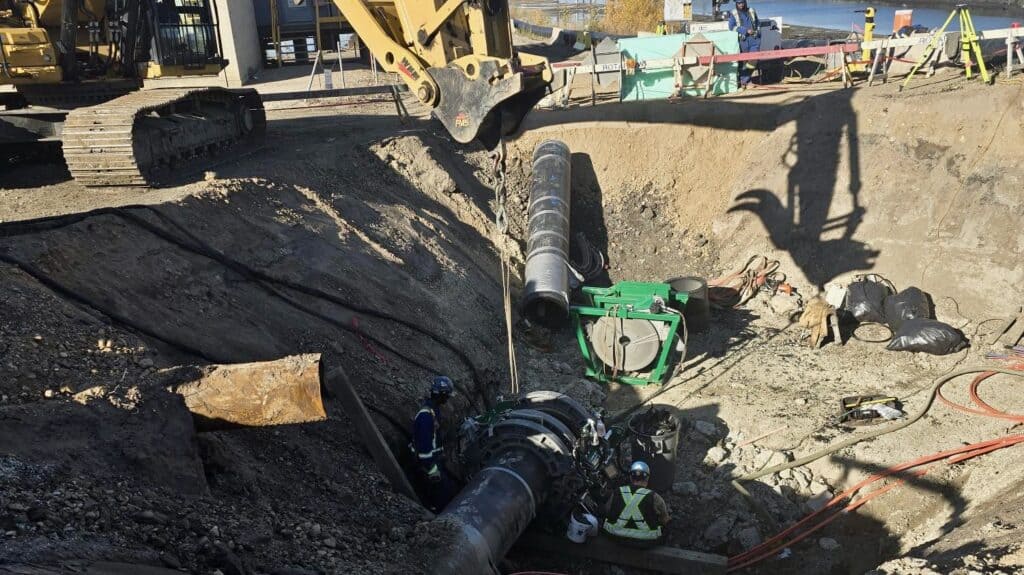

- 28-inch HDPE pipe installation via the drilled pathway
- Including HI-FI leak detection technology
- Final examination and confirmation of the system
The pipeline could be installed effectively while preserving the integrity of the surrounding infrastructure thanks to the HDD technique.
Integration of HI-FI Leak Detection
Rotaflow installed an HI-FI leak detection system on the HDPE pipeline as part of the project.
By identifying possible leaks early on, this sophisticated monitoring system enables operators to act swiftly and avoid more serious system failures.
The HI-FI leak detection system has the following advantages:
Early detection of leaks in pipelines
Decreased risk to the environment
Reduced maintenance expenses over time
Enhanced dependability of operations
Over the course of its lifetime, this extra layer of protection guarantees the pipeline’s continued safety, effectiveness, and affordability.
Outcomes
- The client benefited greatly from the project’s successful completion.
- The successful installation of a 250-foot HDD pipeline; cost savings over conventional excavation and shoring.
- Minimal disruption to plant operations
- installation of cutting-edge HI-FI leak detection technology; and long-term pipeline system reliability were among the project’s outcomes.
- Rotaflow provided a solution that increased project efficiency and long-term operational value by fusing cutting-edge monitoring technology with HDD installation techniques.
